GCH25F

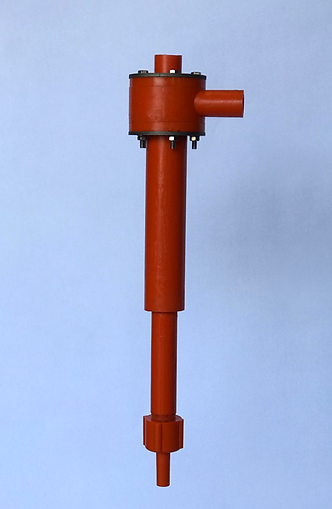

25mm 5° Cyclone

25mm 5° Cyclone

Product Summary

  • Small diameter hydrocyclone for de-slime applications

  • Manufactured from hard wearing PU

  • Available for immediate shipment from our UK stock.

Specifications

Overall dimensions

  • 495mm long



Internal geometry

  • Cylindrical section diameter  25mm

  • Cone angle  5°

  • Vortex Finder inside diameter 8.2mm

  • Spigot diameter 2.0 - 6.0mm



Typical working parameters

  • Operating Pressure 0.5 - 4.0 Bar

  • Flow Rate  0.5 - 1.5m³/hr

  • D50 Cut Size 3.2 - 5.7µm

  • Flow Ratio to underflow 5 - 40%

Flow Vs Pressure - Water Only
Corrected Recovery - Baseline
