Gravity Cyclones

GCRA12x50F

50mm Fine Cut 12 Cyclone Radial Cluster

50mm Fine Cut 12 Cyclone Radial Cluster

Product Summary

  • 12 cyclone radial assembly with integral stand, manifold and launders

  • Supplied complete with cyclones, control valves and pressure gauge

  • 50mm cyclones suitable for for de-slime and de-water applications

  • System fitted with a hard wearing composite lining and cyclones manufactured from hard wearing PU

  • Available to special order only

​

Specifications

Overall dimensions

  • 1400mm x 1400mm x 1985mm (l x w x h)

  • Weight 360Kg



Internal geometry

  • Cylindrical section diameter  50mm

  • Cone angle  5°

  • Vortex Finder inside diameter 15.3mm

  • Spigot diameter 6.0 - 12.0mm



Typical working parameters

  • Operating Pressure 0.5 - 4.0 Bar

  • Flow Rate  18 - 48m³/hr

  • D50 Cut Size 5.0 - 9.0µm

  • Flow Ratio to underflow 25 - 70%

​

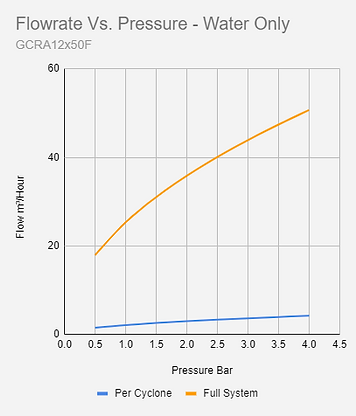

GCRA12x50F Flow Vs Pressure - Water Only
GCC50F Corrected Recovery - Baseline

Micro MGS' mechanical system is ultra simple allowing easy access for occasional maintenance.

Hydraulic Diagram Radial Cluster
